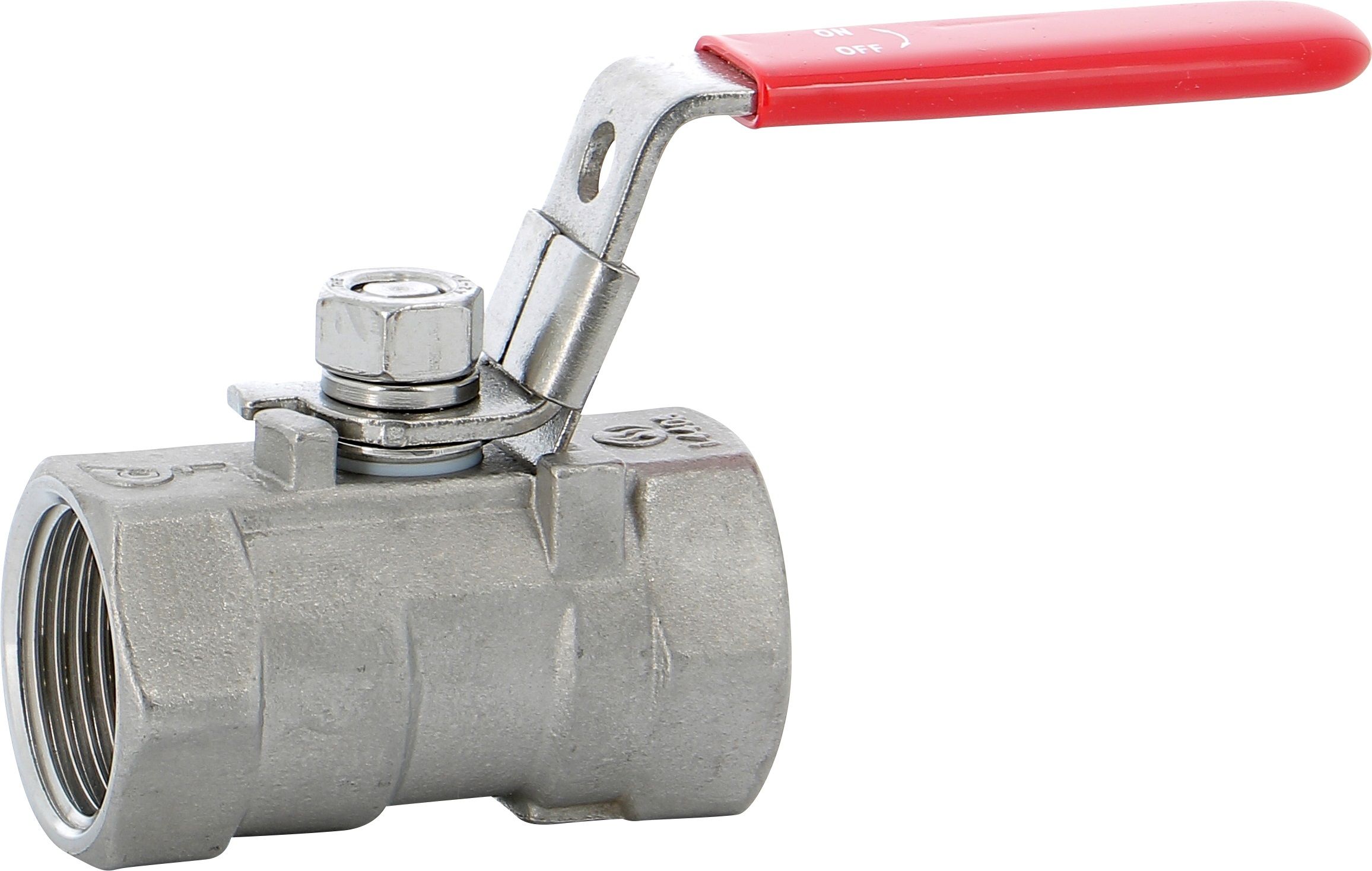

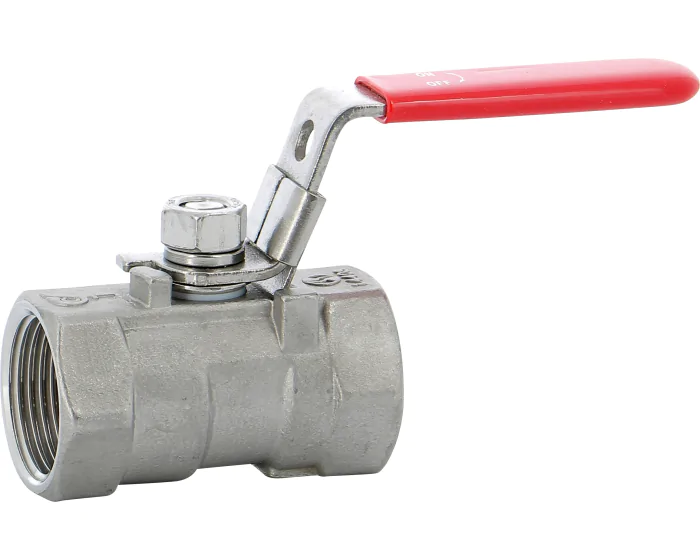

The ball valve series 708, 1 piece body, in stainless steel, female/female BSP connection, PN40, reduced bore, anti-blowout stem, solid ball for chemical and pharmaceutical industries, compressed air
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Tightness test standard | ISO 5208. Rate A |
| Stem sealing material | PTFE gland packing |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Torque (Nm) | 2 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 405.0 |
| Fluid | Acids |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Reduced |
| ISO pad 5211 | No |
| PS (bar) | 40 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Ball valve design | Monobloc |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Reduced Monobloc 1/4'' | 708002 | S1007753 |
€6.24
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced Monobloc 3/8'' | 708003 | S1007754 |
€7.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced Monobloc 1/2'' | 708004 | S1007755 |
€7.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced Monobloc 3/4'' | 708005 | S1007756 |
€9.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced Monobloc 1'' | 708006 | S1007757 |
€12.13
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced Monobloc 1''1/4 | 708007 | S1007758 |
€21.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced Monobloc 1''1/2 | 708008 | S1007759 |
€21.09
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced Monobloc 2'' | 708009 | S1007760 |
€38.56
(excl. btw)
|
add to cart |
